External Limit Switches in Arduino Code

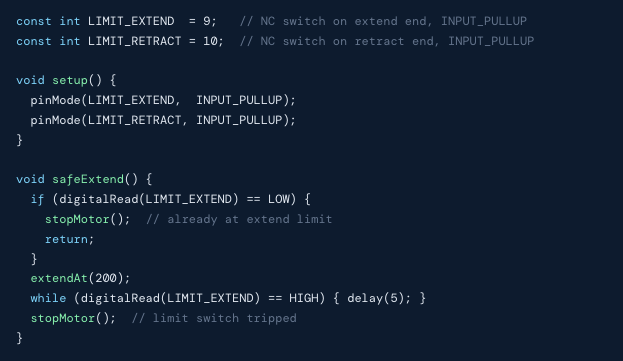

Connect NC limit switches to Arduino digital pins (with INPUT_PULLUP). When the switch is untriggered (closed), the pin reads HIGH. When the mechanism reaches the switch (opens it), the pin reads LOW — stop the motor.
%2014.19.15.png?width=623&height=361&name=Captura%20de%20Pantalla%202026-03-10%20a%20la(s)%2014.19.15.png)
⚠️ Check limit state before every move Always read the limit switch state at the beginning of a move command. If the switch is already tripped, don't start the motor — the actuator may already be at the boundary and commanding extension could force it against a physical stop.
Safety Interlocks

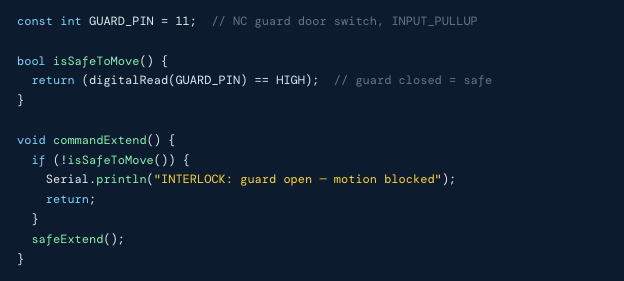

An interlock prevents motion unless a specific condition is met. Common examples: a door/guard switch that must be closed before the actuator can move, or a weight sensor that prevents extension if no load is present.
%2014.20.16.png?width=624&height=281&name=Captura%20de%20Pantalla%202026-03-10%20a%20la(s)%2014.20.16.png)
Watchdog Timer for Hung Motion

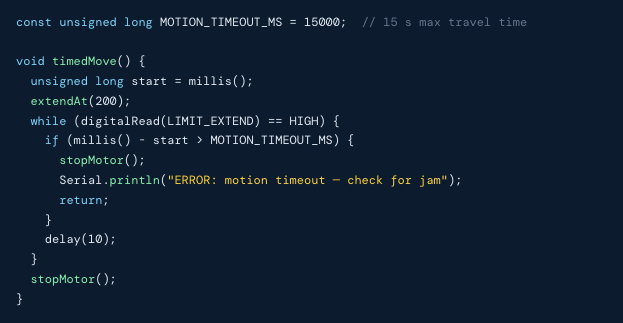

Add a software timeout to detect if the actuator gets stuck (mechanical jam, broken limit switch wire) and fails to reach the target within an expected time:
%2014.20.52.png?width=623&height=323&name=Captura%20de%20Pantalla%202026-03-10%20a%20la(s)%2014.20.52.png)
